.338 (8.6 X 70MM) LAPUA MAGNUM

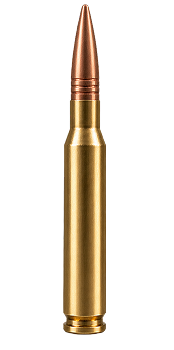

bullet image
Solid CuZn Alloy Core
BOXER
NON-CORROSIVE
SPECIAL PURPOSE
.338 (8.6 X 70MM)
LAPUA MAGNUM
Solid CuZn Alloy Core
Special-purpose ammunition engineered for exceptional long-range accuracy and consistent reliability.
Solid CuZn Alloy Core
BOXER
NON-CORROSIVE
REQUEST A QUOTE →
~16.2g250GR
BULLET WEIGHT
~44.40g
CARTRIDGE WEIGHT
10YR
SHELF LIFE
TECHNICAL SPECIFICATIONS &
Performance Data
CASE MATERIAL
Brass CuZn30
·
PROPELLANT
Double/Single Base
·
PRIMER
Boxer
Non-Corrosive
PROJECTILE DETAILS
Projectile Types
TYPE OF PROJECTILE
Flat Nose Boat Tail
JACKET MATERIAL
Solid CuZn alloy
CORE
Solid CuZn alloy
JACKET MATERIAL
Tombac CuZn10
CORE
Lead & Antimony
WEIGHT
124 gr / 8 g
JACKET MATERIAL
Tombac CuZn10
CORE
Lead & Antimony
WEIGHT
124 gr / 8 g
JACKET MATERIAL
Tombac CuZn10
CORE
Lead & Antimony
WEIGHT
158 gr / 10.2 g
CARTRIDGE DETAILS
Dimensions & Weight
CARTRIDGE LENGTH
90.20mm-91.50mm
CARTRIDGE WEIGHT
~44.40g
CASE LENGTH
68.60mm-69.20mm
CASE WEIGHT
~23.0g
BULLET LENGTH
~59.70mm
BULLET WEIGHT
~16.2g (250grain)
PART NUMBER
HPM19124
BLANK CASE
FMJ RN (124 gr)
VELOCITY V16 M/S
370 ± 10
PRESSURE AVG + 3*SD BAR
2850
WEIGHT
~12.1 g
PART NUMBER
HPM19124JHP
BLANK CASE
JHP (124 gr)
VELOCITY V16 M/S
370 ± 10
PRESSURE AVG + 3*SD BAR
2850
WEIGHT
~12.1 g
PART NUMBER
HPM19158SUB
BLANK CASE
Subsonic FMJ FN/RN (158 gr)
VELOCITY V16 M/S
290 ± 10
PRESSURE AVG + 3*SD BAR
2850
WEIGHT
~14.4 g
PART NUMBER
HPM19BL
BLANK CASE
Blank
WEIGHT
~5.4 g
TECHNICAL SPECIFICATIONS &
Characterstics
VELOCITY, AVERAGE

860 ± 15 m/s, at (0) meter distance at 21±2°C, using standard test barrel length of 650mm/twist rate 10".

MEAN CHAMBER PRESSURE
Pavg. max ≤ 4200 bar at 21±2°C,, standard proof barrel, EPVAT using 6215 piezoelectric transducer, CIP
FUNCTIONING
Cartridges function all specified weapons without casualty at ambient, - 54°C and +52°C
ACCURACY TEST

100% radius ≤ 75mm at 300m from the muzzle end, using standard proof barrel of 650mm length

OPERATING TEMPERATURE
-10°C to +50°C
WATERPROOF

Cartridges are Waterproof (Bubbles Test)

PENETRATION EFFECT
12mm steel plate, HB 360-400 at a distance of 500 m. OR 20mm Steel plate S235 JR at a distance of 1000m
BULLET EXTRACTION FORCE, MINIMUM

≥ 300 N

SHELF LIFE
10 years
MAXIMUM RANGE
4872 meters
CERTIFICTIONS &
Compliance Standards

MIL-STD-636 ISO 9001:2015 ISO 14001:2015 ISO 45001:2018 MAKE IN INDIA
