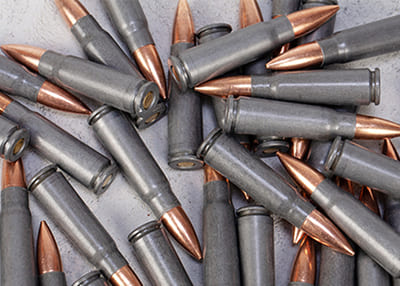

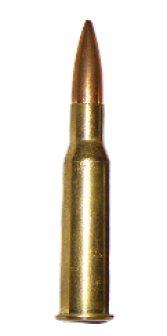

Cal 7.62 x 54R

Primer

Large Rifle, Non Corrosive, Non Mercuric, Boxer

Case

Regular Material : Brass CuZn30

Propellant

Single / Double Base

Link

PKM

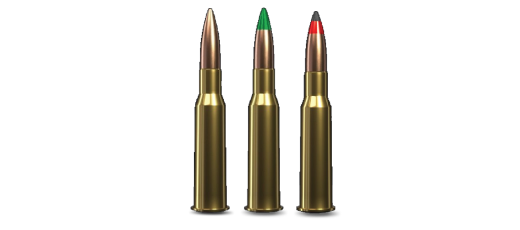

Projectile Types

M84 :
Jacket Material-Gilding metal CuZn10,
Core-Lead Core with Antimony,
Weight-170 gr / 11.0 g

SNIPER :
Jacket Material-Gilding metal CuZn10,
Core-Steel core with Lead-Antimony slug,
Weight-152 gr / 9.90 g

STEEL CORE :
Jacket Material-Gilding metal CuZn10,
Core-Steel Core enveloped with Lead & Antimony,
Weight-150 gr / 9.75 g

TRACER T-46 :
Jacket Material-Gilding metal CuZn10,
Core-Lead Core with Antimony & tracer compos,
Weight-145 gr / 9.40 g

API :
Jacket Material-Gilding metal CuZn10,
Core-Steel Core with Lead - Antimony slug & incendiary compos,
Weight-164 gr / 10.68 g

Packing 01

20 rounds in inner cardboard box
28 cardboard boxes (540 rounds) in metal can M2A1
2 metal cans (1080 rounds) in wire bound wooden box
48 wooden boxes (51840 rounds) on a wooden palette

Packing 02

200 rounds in metal link belt (PKM)
2 metal link belts in a metal can M2A1 (400 rounds)
2 metal cans (800 rounds) in a wire bound wooden box
48 wooden boxes (38400 rounds) on a wooden palette

Cartridge Specifications

Part Number -HPM754RM84
Blank case-FMJ (170 gr),
Velocity V25 m/s-775 - 795,
Accuracy R50 avg. at 300 m-≤ 18 cm,
Pressure Max Bar-3900
Weight- ~ 24.4 g

Part Number -HPM754RSN
Blank case-FMJ (152 gr),
Velocity V25 m/s-815 - 830,
Accuracy R50 avg. at 300 m-≤ 8 cm,
Pressure Max Bar-3900
Weight- 10.84 g – ~ 23.20 g

Part Number -HPM754RSC
Blank case-FMJ (150 gr),
Velocity V25 m/s-820 - 835,
Accuracy R50 avg. at 300 m-≤ 9 cm,
Pressure Max Bar-3900
Weight- 10.84 g – ~ 23.20 g

Part Number -HPM754RT46TR
Blank case-FMJ (145 gr),
Velocity V25 m/s-790 - 805,
Accuracy R50 avg. at 300 m-≤ 15 cm,
Pressure Max Bar-3900
Weight- 10 g – ~ 23.10 g

Part Number -HPM754RAP
Blank case-OTMBT (220 gr),
Velocity V25 m/s-800 - 815,
Accuracy R50 avg. at 300 m-≤ 15 cm,
Pressure Max Bar-3900
Weight- 10.84 g – ~ 23.95 g

*Penetration SC/SN/API: At least 80% rounds completely penetrate steel plate target of min. 5 mm thick (SAE 1010 or SAE 1020 with HRB55 to B70) situated at 100m from the muzzle of the weapon.
*Tracer Visibility T46: At least 90% bullets shows visible trace up to min 3 sec from the muzzle of the weapon.
*Incendiary Effect API: At least 80% bullets shows incendiary effect at a box with petrol located behind 10 mm plate situated at 100 m from the muzzle of the weapon.
