Cal. 12.7 X 108 mm

Cal. 12.7 x 108 mm

Primer

Large Rifle, Non Corrosive, Non Mercuric, Boxer / Berdan

Case

Regular Material : Brass CuZn30

Propellant

Double Base

Link

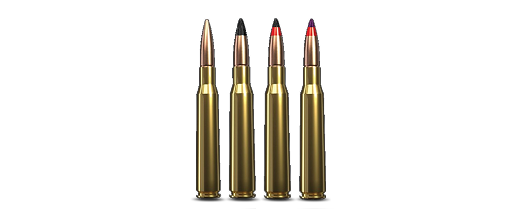

Projectile Types

BALL
Jacket Material: Tombac CuZn10
Core: Steel Core with Lead & Antimony
Weight: 740 gr / 48 g

AP
Jacket Material: Tombac CuZn10
Core: Steel Core with Lead & Antimony
Weight: 740 gr / 48 g

API
Jacket Material: Tombac CuZn10
Core: Steel Core with Lead – Antimony & thermit Compos
Weight: 740 gr / 48 g

APIT
Jacket Material: Tombac CuZn10
Core: Steel Core with Lead – Antimony & thermit & Tracer Compos
Weight: 679 gr / 44 g

Packing 01

96 rounds in metal can M2A1
2 metal cans (192 rounds) in wire bound wooden box
48 wooden boxes (9216 rounds) on a wooden palette

Packing

50 rounds in one metal link belt (DSHKM)
1 metal link belt in metal can M2A1 (50 rounds)
2 metal cans (100 rounds) in wire bound wooden box
48 wooden boxes (4800 rounds) on a wooden palette

Cartridge Specifications

Part Number -HPM12108BALL
Blank case:-FMJ (740 gr)
Velocity: V24 m/s-810 – 825
Accuracy Avg. Mean Radius at 300 m ≤ 20 cm
Pressure Bar:3040
Weight ~ 134 g

Part Number -HPM12108AP
Blank case:-FMJ (740 gr)
Velocity: V24 m/s-810 – 825
Accuracy Avg. Mean Radius at 300 m ≤ 20 cm
Pressure Bar:3040
Weight ~ 134 g

Part Number -HPM12108API
Blank case:-FMJ (740 gr)
Velocity: V24 m/s-810 – 825
Accuracy Avg. Mean Radius at 300 m ≤ 20 cm
Pressure Bar:3040
Weight ~ 134 g

Part Number -HPM12108APIT
Blank case:-FMJ (679 gr)
Velocity: V24 m/s-810 – 825
Accuracy Avg. Mean Radius at 300 m ≤ 20 cm
Pressure Bar:3040
Weight ~ 129 g

*Penetration AP/API: Bullet shall penetrate 22 mm thick armour plate (321 – 375 HB) situated at 100 m from the muzzle of the weapon.
*Penetration APIT: Bullet shall penetrate 15 mm thick armour plate (321 – 375 HB) situated at 100 m from the muzzle of the weapon.
*Incendiary API/APIT: At 70 m, the incendiary component of bullets shall ignite cloth soaked in petrol located behind the armour plate of 15 mm (321 – 375 HB).
*Tracer Visibility APIT: Visible trace not less than 1200 m from the muzzle of the weapon.
