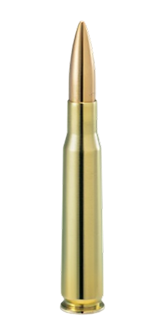

Cal. 12.7 x 99 mm

Primer

Large Rifle, Non Corrosive, Non Mercuric, Boxer

Case

Regular Material : Brass CuZn30

Propellant

Double Base

Link

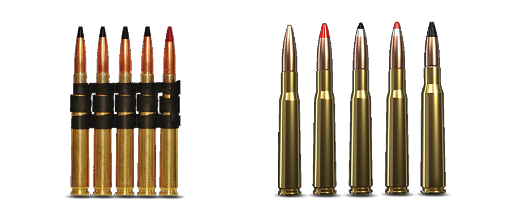

Projectile Types

M33 BALL
Jacket Material: Tombac CuZn10
Core: Lead Core with Antimony
Weight: 653 gr / 42.30 g

M2 AP
Jacket Material: Tombac CuZn10
Core: Steel Core with Lead & Antimony
Weight: 656 gr / 42.5 g

M17 Tracer
Jacket Material: Tombac CuZn10
Core: Steel Core with Lead, Antimony & tracer compos
Weight: 656 gr / 42.5 g

M8 API
Jacket Material: Tombac CuZn10
Core: Steel Core with Lead, Antimony & thermit compos
Weight: 661 gr / 42.65 g

M20 APIT
Jacket Material: Tombac CuZn10
Core: Steel Core with Lead, Antimony, thermit & tracer compos
Weight: 620 gr / 40.12 g

M33 BALL SNIPER
Jacket Material: Tombac CuZn10
Core: Steel Core with Lead & Antimony
Weight: 750 gr / 48.60 g

SUBSONIC
Jacket Material: Tombac CuZn10
Core: Steel Core with Lead & Antimony
Weight: 653 gr / 42.30 g

Packing 01

140 rounds in metal can M2A1
2 metal cans (280 rounds) in wire bound wooden box
48 wooden boxes (13440 rounds) on a wooden palette

Packing 02

100 rounds in one metal link belt (M9)
1 metal link belt in metal can M2A1 (100 rounds)
2 metal cans (200 rounds) in wire bound wooden box
48 wooden boxes (9600 rounds) on a wooden palette

Cartridge Specifications

Part Number -HPM1299M33
Blank case:-FMJ (653 gr)
Velocity: V24 m/s-885 ± 10
Accuracy at 550 m:-Sdx/Sdy ≤ 30 cm
Pressure: P+3Sd Bar-4500
Weight: ~ 113 g

Part Number -HPM1299M2
Blank case:-FMJ (656 gr)
Velocity: V24 m/s-885 ± 10
Accuracy at 550 m:-Sdx/Sdy ≤ 30 cm
Pressure: P+3Sd Bar-4500
Weight: 10.84 g - ~ 114 g

Part Number -HPM1299M17
Blank case:-FMJ (656 gr)
Velocity: V24 m/s-885 ± 10
Accuracy at 550 m:-Sdx/Sdy ≤ 40 cm
Pressure: P+3Sd Bar-4500
Weight: 10.84 g - ~ 112 g

Part Number -HPM1299M8
Blank case:-FMJ (661 gr)
Velocity: V24 m/s-885 ± 10
Accuracy at 550 m:-Sdx/Sdy ≤ 30 cm
Pressure: P+3Sd Bar-4500
Weight: 10 g - ~ 115 g

Part Number -HPM1299M20
Blank case:-FMJ (620 gr)
Velocity: V24 m/s-885 ± 10
Accuracy at 550 m:-Sdx/Sdy ≤ 40 cm
Pressure: P+3Sd Bar-4500
Weight: 10.84 g - ~ 112 g

Part Number -HPM1299M33SN
Blank case:-FMJ (750 gr)
Velocity: V24 m/s-830 ± 10
Accuracy at 550 m:-ES ≤ 6 cm at 100 m
Pressure: P+3Sd Bar-4500
Weight: 10.84 g - ~ 121 g

Part Number -HPM1299SUB
Blank case:-FMJ (653 gr)
Velocity: V24 m/s-319 ± 10
Accuracy at 550 m:-ES ≤ 20 cm at 100 m
Pressure: P+3Sd Bar-4500
Weight: 10.84 g - ~ 113 g

*Penetration M2AP / M8 API / M20 APIT: Bullet shall penetrate 22 mm thick armour plate (321–375 HB) at 100m.
*Incendiary M8 API / M20 APIT: Produces incandescent flash against target at 160m.
*Tracer Visibility M17 Tracer: Trace visible from max 200 m to min 1500 m from muzzle.
