Cal 7.62 x 39 mm

Primer

Large Rifle, Non Corrosive, Non Mercuric, Boxer

Case

Regular Material : Brass CuZn30
Blank Material : Brass CuZn30

Propellant

Single / Double Base

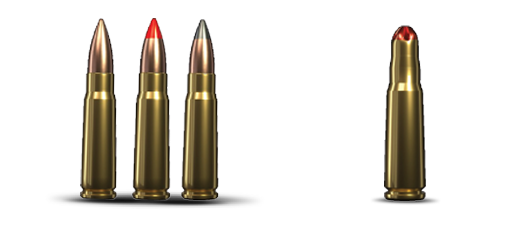

Projectile Types

M67
Jacket Material: Tombac CuZn10
Core: Lead Core with Antimony
Weight: 123 gr / 9.4 g

M43
Jacket Material: Gilding Metal CuZn10
Core: Mild Steel Core Enveloped with Lead & Antimony
Weight: 123 gr / 9.4 g

AP
Jacket Material: Tombac CuZn10
Core: Tungsten Carbide Core
Weight: 123 gr / 9.4 g

M78 TRACER
Jacket Material: Tombac CuZn10
Core: Lead Core with Antimony & tracer compos
Weight: 119 gr / 7.7 g

Packing 01

20 rounds in inner cardboard box
28 inner cardboard boxes (560 rounds) in a metal can M2A1
2 metal boxes (1120 rounds) in wire bound wooden box
48 wooden boxes (53760 rounds) on a wooden palette

Packing 02

20 rounds in an inner cardboard box
75 inner cardboard boxes (1500 rounds) in a carton box
50 carton boxes (75000 rounds) on a wooden palette

Cartridge Specifications

Part Number -HPM739M67
Blank case-FMJ (123 gr)
Velocity V25 m/s-733 ± 10
Accuracy Avg. Mean Radius at 300 m-≤ 11 cm
Weight- ~ 17.4 g

Part Number -HPM739M43
Blank case-FMJ (123 gr)
Velocity V25 m/s-733 ± 10
Accuracy Avg. Mean Radius at 300 m-≤ 15 cm
Weight- ~ 17.4 g

Part Number -HPM739AP
Blank case-FMJ (123 gr)
Velocity V25 m/s-733 ± 10
Accuracy Avg. Mean Radius at 300 m-≤ 15 cm
Weight- ~ 17.4 g

Part Number -HPM739M78T
Blank case-FMJ (119 gr)
Velocity V25 m/s-706 ± 10
Accuracy Avg. Mean Radius at 300 m-≤ 22 cm
Weight- ~ 17.06 g

Part Number -HPM739BL
Blank case-Blank
Pressure Max Bar-4150
Weight- ~ 9.7 g

*Penetration AP: The bullet shall show complete penetration of 6 mm thick armor plate (min. 420 HB) located at 100 m from the muzzle of the weapon.
*Tracer Visibility M78: Dim trace to min 15m from the weapon, visible from max. 115 m to min. 800 m from the muzzle of the weapon.
