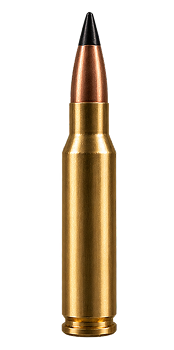

338 Lapua Magnum AP
Tungsten Carbide & Lead Core
BOXER
NON-CORROSIVE
SPECIAL PURPOSE
.338
LAPUA MAGNUM AP
TUNGSTEN CARBIDE & LEAD CORE
Special-purpose ammunition engineered for
exceptional long-range accuracy and consistent reliability.
REQUEST A QUOTE → Tungsten Carbide & Lead Core
BOXER
NON-CORROSIVE
~16.80g(260GR)
BULLET WEIGHT
~45.00g
CARTRIDGE WEIGHT
10YR
SHELF LIFE
TECHNICAL SPECIFICATIONS &
Performance Data
CASE MATERIAL
Brass CuZn30
·
PROPELLANT
Double/Single Base
·
PRIMER
Boxer
Non-Corrosive
PROJECTILE DETAILS
Projectile Types
TYPE OF PROJECTILE
FMJ-AP
JACKET MATERIAL
Tombac CuZn10
CORE
Tungsten Carbide & Lead Core
JACKET MATERIAL
Tombac CuZn10
CORE
Lead & Antimony
WEIGHT
124 gr / 8 g
JACKET MATERIAL
Tombac CuZn10
CORE
Lead & Antimony
WEIGHT
124 gr / 8 g
JACKET MATERIAL
Tombac CuZn10
CORE
Lead & Antimony
WEIGHT
158 gr / 10.2 g
CARTRIDGE DETAILS
Dimensions & Weight
CARTRIDGE LENGTH
90.20mm-91.50mm
CARTRIDGE WEIGHT
~45.00g
CASE LENGTH
68.60mm-69.20mm
CASE WEIGHT
20.00g-24.00g
BULLET LENGTH
36.30mm-36.70mm
BULLET WEIGHT
~16.80g (260gr)
PART NUMBER
HPM19124
BLANK CASE
FMJ RN (124 gr)
VELOCITY V16 M/S
370 ± 10
PRESSURE AVG + 3*SD BAR
2850
WEIGHT
~12.1 g
PART NUMBER
HPM19124JHP
BLANK CASE
JHP (124 gr)
VELOCITY V16 M/S
370 ± 10
PRESSURE AVG + 3*SD BAR
2850
WEIGHT
~12.1 g
PART NUMBER
HPM19158SUB
BLANK CASE
Subsonic FMJ FN/RN (158 gr)
VELOCITY V16 M/S
290 ± 10
PRESSURE AVG + 3*SD BAR
2850
WEIGHT
~14.4 g
PART NUMBER
HPM19BL
BLANK CASE
Blank
WEIGHT
~5.4 g
TECHNICAL SPECIFICATIONS &
Characterstics
VELOCITY, AVERAGE
847 ± 15 m/s, at (0) distance from the muzzle at 21±2°C, standard proof barrel of 650mm length
MEAN CHAMBER PRESSURE
Pavg max ≤ 4200 bar at 21±2°C, using standard proof barrel, EPVAT using 6215 piezoelectric transducer, CIP
FUNCTIONING
Cartridges function all specified weapons without casualty at ambient temperatures at -54°C and +52°C
ACCURACY TEST
Sa ≤ 25.5mm at 300m from the muzzle end, using standard proof barrel of 650mm
STORAGE TEMPERATURE
From -30°C to +55°C with daily temperature difference less than 10°C
PENETRATION EFFECT
Completely penetrate 15mm steel plate (HB400), at a distance of 300m from the muzzle of the weapon.
BULLET EXTRACTION FORCE, MINIMUM
≥ 300 N
OPERATING TEMPERATURE
-15°C to +50°C
SHELF LIFE
10 years
WATERPROOF
Cartridges are Waterproof (Bubbles Test)
MAXIMUM RANGE
6906 meters
CERTIFICTIONS &
Compliance Standards
