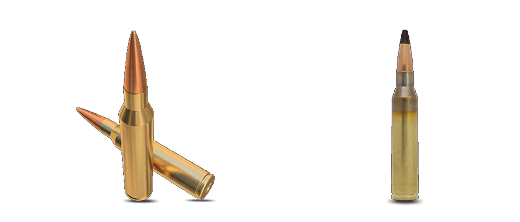

Cal .338 Lapua Magnum - Hughes Precision Manufacturing Pvt. Ltd.

Cal .338 Lapua Magnum

Primer

Large Rifle, Non Corrosive, Non Mercuric, Boxer

Case

Regular Material : Brass CuZn30
Blank Material : Brass CuZn30

Propellant

Double Base

Projectile Types

OTM BT
Jacket Material: Tombac CuZn10
Core: Lead Core with Antimony
Weight: 250 gr / 16.20 g

OTM BT
Jacket Material: Tombac CuZn10
Core: Lead Core with Antimony
Weight: 300 gr / 19.43 g

AP
Jacket Material: Tombac CuZn10
Core: Steel Core with Lead & Antimony
Weight: 290 gr / 18.79 g

SUBSONIC
Jacket Material: Tombac CuZn10
Core: Lead Core with Antimony
Weight: 250 gr / 16.20 g

Packing 01

10 rounds in inner cardboard box
16 cardboard boxes (160 rounds) in metal can M2A1
120 metal cans (19200 rounds) on a wooden palette

Packing 02

10 rounds in inner cardboard box
16 inner cardboard boxes (160 rounds) in metal can M2A1
2 metal cans (320 rounds) in wire bound wooden box
48 wooden boxes (15360 rounds) on a wooden palette

Cartridge Specifications

Part Number -HPM8670250
Blank case-OTM BT (250 gr)
Velocity V25 m/s-890 ± 15
Accuracy R50 avg. at 300 m - Ravg ≤ 25 cm at 800 m
Pressure Max Bar-4200
Weight- ~ 44 g

Part Number -HPM8670300
Blank case-OTM BT (300 gr)
Velocity V25 m/s-800 ± 15
Accuracy R50 avg. at 300 m - Ravg ≤ 25 cm at 800 m
Pressure Max Bar-4200
Weight- ~ 47 g

Part Number -HPM8670AP
Blank case-OTM BT (290 gr)
Velocity V25 m/s-800 ± 15
Accuracy R50 avg. at 300 m - ES ≤ 12 cm at 300 m
Pressure Max Bar-4200
Weight- ~ 47 g

Part Number -HPM860250SUB
Blank case-OTM BT (300 gr)
Velocity V25 m/s-315 ± 8
Accuracy R50 avg. at 300 m - R100 ≤ 50 cm at 100 m
Pressure Max Bar-4200
Weight- ~ 40.90

*Penetration AP: Completely penetrate 16mm thick Armor Steel Plate RHA (350HB) situated at 100m from the muzzle of the weapon.
