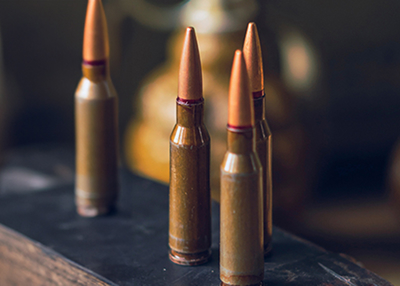

Cal 5.45 x 39 mm

Primer

Small Rifle, Non Corrosive, Non Mercuric, Boxer/Berdan

Case

Regular Material : Brass CuZn30

Propellant

Single / Double Base

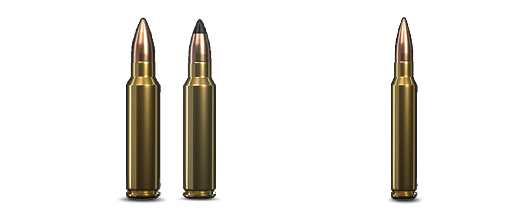

Projectile Types

Lead Core BALL :
Jacket Material-Gilding Metal CuZn10,
Core-Lead Core with Antimony,
Weight-51-55 gr / 3.30 – 3.55 g

Steel Core BALL :
Jacket Material-Gilding Metal CuZn10,
Core-Steel core with Lead-Antimony,
Weight-62–66 gr / 4.04 – 4.26 g

Packing 01

20 rounds in inner cardboard box
50 cardboard boxes (1000 rounds) in one metal can M2A1
2 metal cans (2000 rounds) in a wire bound wooden box
48 wooden boxes (96000 rounds) on a wooden palette

Packing 02

20 rounds in an inner cardboard box
100 inner cardboard boxes (2000 rounds) in a carton box
50 carton boxes (100000 rounds) on a wooden palette

Cartridge Specifications

Part Number -HPM54539LC

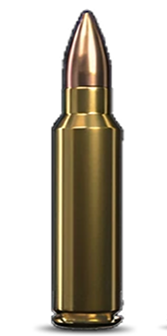

Blank case-FMJ (51-55 gr),
Velocity V25 m/s-870 – 890,
Accuracy at 100 m-R50 avg ≤ 3 cm,
Pressure Max Bar-≤ 3800
Weight- 10 g – 11 g

Part Number -HPM54539SC
Blank case- FMJ (62-66 GRAINS),
Velocity V25 m/s-810 – 830,
Accuracy at 100 m-R100 avg ≤ 3.2 cm,
Pressure Max Bar-≤ 3800
Weight- 10.84 g – 11.54 g

*Penetration AP: At least 80% rounds completely penetrate steel plate target of min. 3.5mm thick (SAE 1010 or SAE 1020 with HRB55 to B70) at 570m from the muzzle of the weapon.
