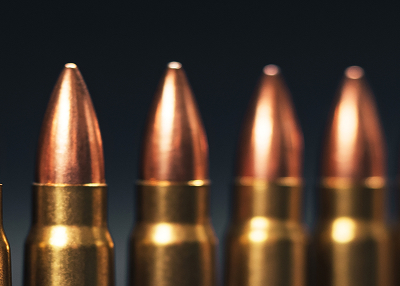

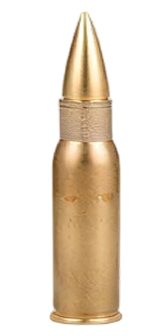

Cal 7.62 x 51 mm

Primer

Large Rifle, Non Corrosive, Non Mercuric, Boxer

Case

Regular Material: Brass CuZn30
Blank Material: Brass CuZn30

Propellant

Double Base

M13

Projectile Types

M80 : Jacket Material-Tombac CuZn10, Core-Lead Core with Antimony, Weight-145 gr / 9.4 g

M62 Tracer : Jacket Material-Tombac CuZn10, Core-Lead Core with Antimony & tracer compos Weight-145 gr / 9.4 g

M852 OTM-BT : Jacket Material-Tombac CuZn10, Core-Lead Core with Antimony, Weight-168 gr / 10.9 g

M118 OTM-BT : Jacket Material-Tombac CuZn10, Core- LEAD CORE WITH ANTIMONY, Weight-175 gr / 11.34 g

SUBSONIC : Jacket Material-Tombac CuZn10, Core-Lead Core with Antimony, Weight-220 gr / 14.25 g

Packing 01

20 rounds in an inner cardboard box 28 cardboard boxes (560 rounds) in metal box M2A1 2 metal cans (1120 rounds) in wire bound wooden box 48 wooden boxes (53760 rounds) on a wooden palette

Packing 02

20 rounds in an inner cardboard box 60 inner cardboard boxes (1200 rounds) in a carton box 50 carton boxes (60000 rounds) on a wooden palette

Packing 03

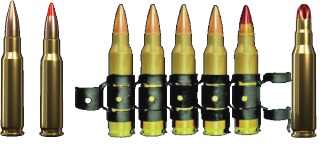

250 rounds in metal link belt (M13) 2 metal link belts in metal box M2A1 (500 rounds) 2 metal boxes (1000 rounds) in wire bound wooden box 48 wooden boxes on a wooden palette

Cartridge Specifications

Part Number -HPM751M80 Blank case-FMJ (145 gr), Velocity V24 m/s-833 ± 15 Accuracy at 550 m-Sdx / Sdy ≤ 20 cm Pressure Max Bar-4150 Weight- ~ 24 g

Part Number -HPM751M62T Blank case-FMJ (145 gr), Velocity V24 m/s-815 ± 15 Accuracy at 550 m-Sdx / Sdy ≤ 30 cm Pressure Max Bar-4150 Weight- ~ 24 g

Part Number -HPM751M852M Blank case-OTMBT (168 gr) Velocity V24 m/s-777 ± 09 Accuracy at 550 m-ES ≤ 25.4 cm Pressure Max Bar-4150 Weight- ~ 25.5 g

Part Number -HPM751M118M Blank case-OTMBT (175 gr) Velocity V24 m/s-777 ± 09 Accuracy at 550 m-ES ≤ 25.4 cm Pressure Max Bar-4150 Weight- ~ 25.8 g

Part Number -HPM751220SUB Blank case-OTMBT (220 gr) Velocity V24 m/s-300 ± 15 Accuracy at 550 m-ES ≤ 10 cm at 100 m Pressure Max Bar-4150 Weight- ~ 24.8 g

Part Number -HPM751M82BL Blank case-Blank Weight- ~ 12 g

*Penetration M852/M118: At least 80% rounds completely penetrate steel plate target of min. 3.5mm thick (SAE 1010 or SAE 1020 with HRB55 to B70) at 550m from the muzzle of the weapon.
*Tracer Visibility M62: Dim trace to min 13m from the weapon, visible from max. 140m to min.775 m from the muzzle of the weapon.
